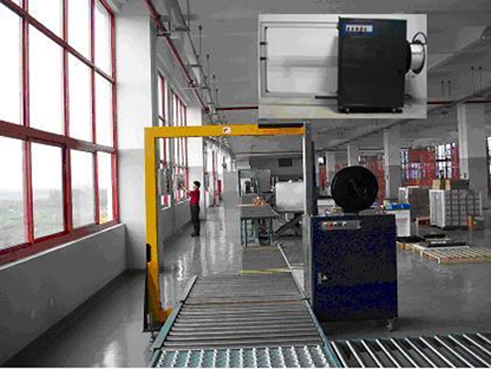

Automatic Side-way Strapping Machine Model No JK-102A

Feature:

      1. Equipped with 2 sets of photocell sensor;

      2. Choice of strapping modes-single, double or no strap;

      3. Available to equip with an additional photocell sensor. When the package

         is placed on strapping area, the conveyor is ready for strapping; If no package

        exists on strapping area, conveyor stops in 30 seconds to save power consumption;

      4.The control box is equipped with input and output circuit for controlling conveyor;

      5. Photocell sensor provided at side of arch for conveyor control

Specification:

      1.      Model: JK-102;

      2.      Net weight: 290KG;

      3.      Strap width: 9? 12?15?19mm;

      4.      Strap thickness: 0.5 ? 1.0mm;

      5.      Power: 0.85KVA;

      6.      Voltage supply: 220V,1Phase,50-60Hz;

      7.      Machine size: L1380× W664× H1770mm;

      8.      Arch size: W600x H850mm(Standard)
