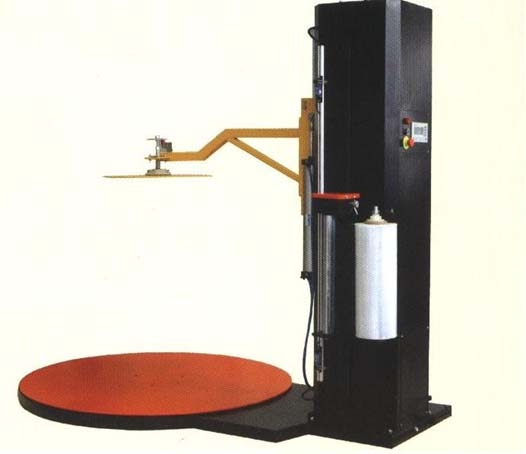

Stretch Wrapping Machine with Top Plate Model JC-2000T
1. Specification:
*Turntable diameter: 1500mm;
*Loading weight: 2000kg (Max)
*Turntable speed: 0-9 circle/Min
*Film carriage speed: 0-5M/Min
*Power/Voltage: 0.7KW,220V;
*Machine size: 1900*1600*2100mm
*Top plate diameter: 800mm
*Wrapping height: 1800mm (Max)
2. Feature:
(A) Adopting programmable control (frequency converter),
(B) Reliable in performance, convenient in operation,
(C) Lapping type and times can be designed on customers' requirements.
(D) Equipped with a photoelectric detector, automatically test the goods height and
control the travel limit.
(E) Rotary table can reset automatically to ensure correct and out
position of the tray.
(F) Easy film roll replacement, LLDPE film with external
diameter?280mm, width?500mm & paper core 76mm can be used.
(G) Custom-made specification is acceptable and also providing a complete set of
packing system of conveying line.
