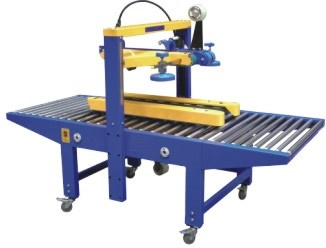

Semi-auto Case sealer Model No JK-5040(top, left&right belt drive)
Feature:
1. Belt drive on top, left and right sides. The main transmission mechanism employs a
specially designed bearing housing featuring high precision, low noise, and extending
service life of belt.
2. The creasing length of tape on both ends of carton can be adjusted as 55 mm, 65 mm, and 75mm.
3. Newly designed patented tapping head employs exclusive pressure plate without the use of
conventional air blow. This ensures film rigidity without deflection that effectively avoids sealing failure.
Specification:
Model No | JK-5040 |
Voltage supply | AC110-220v/60-50Hz |
Power consumption | 180W |
Conveyor speed | 15.7m/min |
Belt driven | Top, left&right |
Adhesive tape width | 48-60mm |
Packing length | ?150mm |
Packing width | 18-50cm |
Packing height | 10-60cm |
Machine size | 960×850×1270mm |
Gross weight | Approx 180kg |
