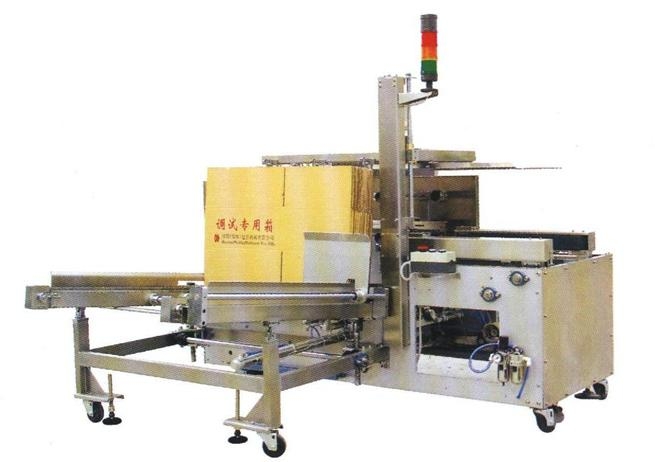

Vertical Case Erector JF-QKA
Feature:
1.Automatic case erecting, forming and sealing with OPP tape;
2.Suitable for various size of carton erecting with easy adjustment;
3. High working efficiency with compact design;
4. All components are processed by CNC and adopted from famous manufacturers to
ensure the quality;
5. Automatic self-adjustment for carton infeed degree;
6. Suitable for OPP tape, Hot glue optional.
7. SUS#304 stainless steel frame construction
Specification:
Model No | JF-QKA |
Carton size(Min) | L 200mm * W 180mm * H 180mm |
Carton size(Max) | L 560mm * W 420mm * H 430mm |
Capacity | 700PCS/Hour |
Machine size | L1800mm * W1980mm * H1550mm |
Voltage supply | 220V/50Hz /140W |
Tape size | 48-72mm(alternative use) |
Net weight | 700kg |
Air supply | 0.5—0.7Mpa |
