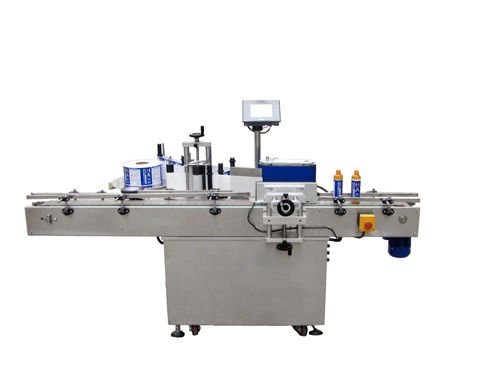

Auto Wrap-around Labeling Machine Model No JT-510

*Feature:

        1.      PLC combined with human/machine interface digital LCD touch screen controller;

        2.      Precision stepper motor driven on labeling head;

        3.      Stainless steel frame construction and components are standard;

        4.      Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling;

        5.      Automatic infeed turntable diameter 550mm(Optional);

        6.      Hot foil printer is available(Optional)

*Specification:

        1.      Model No: JT-510;

        2.      Label width: 10-130mm;

        3.      Labeling speed: 0-25 M/Min;

        4.      Infeed turntable diameter: ?550mm;

        5.      Bottle diameter: Below 100mm;

        6.      Labeling accuracy: ±1mm;

        7.      Power supply: 450W , 110V/220V , 50/60HZ;

        8.      Machine size: L1500 * W650 * H1450 mm

        9.      Reel Inner diameter: 75mm;

       10.  Reel outer diameter: Max 360mm
