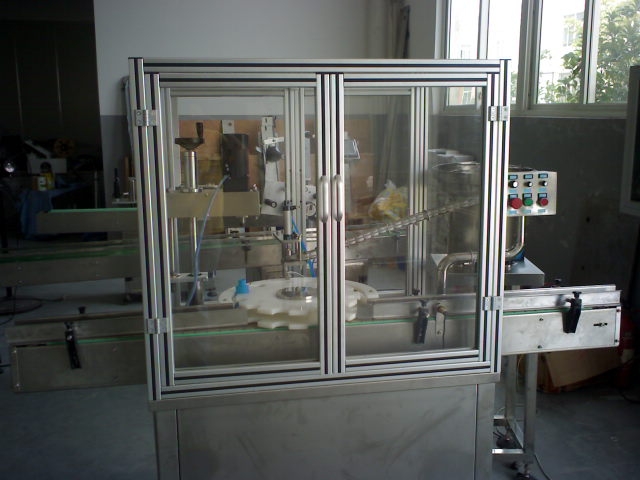

Auto Rotary Capping Machine Model No MGS-180
*Product Application:
It is commonly used for container cap sealing operation in pharmaceutical, food, household
products, pesticides, fine chemical industries
*Specification:
1). Capacity ?20-55 bottle per minute;
2). Cap type ?Plastic screw Cap;
3). Voltage supply ?220V/380V, 1/3 Phase,50-60Hz;
4). Power consumption?1.2W
5). Air consumption : 4kgs×30Liter;
6). Net weight ?600Kg;
7). Gross weight ?700;
8). Packing Size ? 3.2×1.2×1.9M (L*W*H)
*Feature:
lFast and easy change over to many bottle sizes by replacement of star-wheel and capping
head components;
lWith multi-point photoelectric detection, automatic machine stop at no-bottle feeding, exit bottle
blockage, bottle falling, in-accurate positioning, insufficient air pressure;
lInstalled with hygienic safety cover, machine stop in case of cover opening;
lBottle breakage rate is reduced by having a shock-absorbing device in capping head base;
lA more reliable cap pickup arm is adopted instead of bottle mouth catch up mechanism;
lA capping head tighten-up operation of capping head initiates air cylinder action;
lA torque adjustment device for tightness control freely of capping;
lA machine in motor speed adjustment by adopting steppless speed controller;
lSuitable for independent operation, also possible for connection with line operation.
