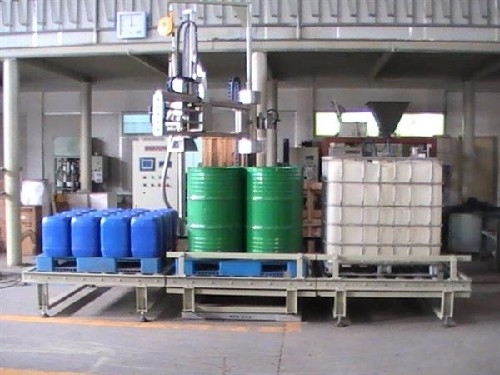

Auto Pallet Drum&Tote Filler JP-1000T

*Product Application:

  Applications include free flowing to viscous products, including chunky products. Fill volumes from 200

   to 1ton at high flow rates with accuracies up to ±0.2% dependent upon drum size and type of product.

  *Technical Specification:

 1). Product       : Free flow to high viscosity

 2). Capacity     : 50-60 drums/Hr dependent upon drum size and type of product;

 3). Container Volume: 200Ltr drum/1ton IBC

 4). Voltage supply   :380V,3P,50Hz(Upon request)

 5). Filling accuracy  : Class X (0.5) (0.2%);

 8). Filling mode     : Above or under liquid level with fast&dribble fill

 *Type of Build:

         1)      Stainless Steel or Zinc Painted Finish

         2)      In effect, performs Debunging, Filling, Bunging, Clinching, Stenciling, Palletizing in

                  a small area with as little as one operator

 *Filling System includes:

         1). No spilling of the product onto clean drums and roller conveyor with hood cover under the nozzle.

         2). Manual/Net/Gross Filling. Auto two stages fast fill&dribble fill;

         3). Quick-release, fast inter-changeable lance for easy and fast maintenance;

        SS316 straight pipe;

         4). Top/Low Fill, auto lowering of lance assembly together with the hood cover and retract to

              its original up position;

         5). Heavy duty weighting platform mounted single load cell, overload protected;

         6). Drums are fed to filler on a pallet of 4 (2x2) infeed conveyor - are either powered or gravity.

         7). spring assists to close filling nozzle in the even of power failure;

         8). Safety Interlock for nozzle fully close before lance can withdraw from drum;

        *Control system includes:

   1). Siemens PLC with touch screen panel

   2). Mettler Toledo loal cell and displayer

   4). Manual/Net/Gross Filling. Auto two stages fast/dribble fill
