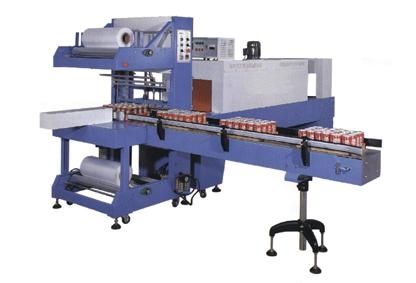

Shrink Wrapping Machine

JST-6030A Automatic Shrink Wrapper

JSM-5030 Heat Shrink Tunnel

Product Application:

JMST-6030A is a fully automatic production line integrated with automatic convey,

feeding, sealing, cutting and shrinking, especially suitable for large, unitary counted

case(box or can) bottom tray packaging. When encased with PE or PVC shrink film,

and complete its shrink packaging. Also we can design requirement of the customer.

After finished the packaging, the products appeared neatness, compact and good for

long transport.

Specification:

Model No

JST-6030A

JSM-5030

Horizontal Height of infeed Conveyor

850±50mm

850±50mm

Max packing dimension

L600×W300×H300mm

W450×H250mm

Packing Speed

8-18pcs/minute

0-12m/minute

Rated Power

1ф/220V/50Hz/2KW

3ф380V 15KW

Sealer time/Shrink time

0.5-1.5S/0-6S

0-6S

Temperature

0-250℃

0-250℃

Width of the Film

Max600mm

Max500mm

Thick of the Film

0.04-0.12mm

0.04-0.12mm

Machine Size

L3180×W800×H1550 mm

L2400×W800×H1400mm

Net weight

650kg

290kg
