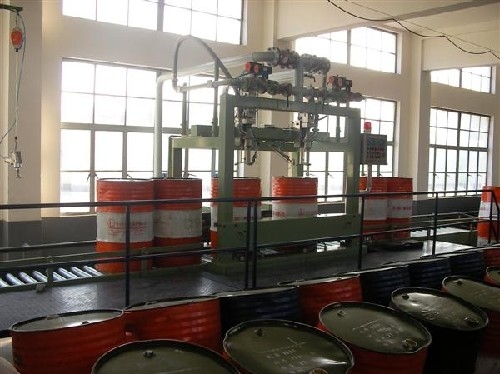

Automatic Drum Filler Model JP-200-IIB

Auto Drum Filler with 2 Heads Model JP-200-IIB

*Product Application:

  Applications include free flowing to viscous products, including chunky products. Fill volumes from 50L to

  1000L at high flow rates with accuracies up to ±0.2% dependent upon drum size and type of product.

 *Technical Specification:

 1). Product          : Free flow to high viscosity

 2). Capacity        : 50-70drums/Hr dependent upon drum size and type of product

  3). Container type :Standard 200Ltr metal/plastic drum

  4). Voltage supply : 380V,3P,50Hz(Upon request)

  7). Filling accuracy  : Class X (0.5) (0.2%);

  8). Filling mode    : Above or under liquid level with fast&dribble fill

 * Filling System includes:

1). Two (2) set of SS304 Nozzles equipped;

         2). No spilling of the product onto clean drums and roller conveyor with hood

              cover under the nozzle.

         3). Manual/Net/Gross Filling. Auto two stages fast fill&dribble fill;

         4). Quick-release, fast inter-changeable lance for easy and fast maintenance;

   5). Top/Low Fill, auto lowering of lance assembly together with the hood cover

              and retract to its original up position;

         6). Heavy duty weighting platform mounted single load cell, overload protected;

         7). All parts in contact with liquid must be in SS304&PTFE seals;

         8). spring assists to close filling nozzle in the even of power failure

         9). Safety Interlock for nozzle fully close before lance can withdraw from drum;

          10). Auto openning mouth tracking and positioning function.

 * Control system includes:

     1). Siemens PLC with Touch Screen Panel

     2). Metter Toledo Load Cell with Displayer

     3). Manual/Net/Gross Filling. Auto two stages fast/dribble fill

 * Optional Item

   1). PLC to DCS synchronization and simulation;

   2). Available to suit Hazardous Environments with Ex-proof system;

     2). Nozzle diving system.
